绕组方式Winding Type —————————— Delta
霍尔电位角度Hall Effect angle ————————— 120º electrical angle

绝缘等级Insulation Class ———————— B
工作环境温度Ambient Temperature Range ——— -20℃~+50℃
绝缘电阻Insulation Resistance —————— 100MΩ Min.500V DC
介电强度Dielectric Strength ———————— 700VAC 1minute

极数Number of Poles

8

相数Number of Phases

3

额定电压Rated Voltage VDC

48

310

310

310

310

额定转速Rated Speed RPM

3000

3000

3000

3000

3000

额定扭矩Rated Torque N-m

5

7.5

10

12.5

15

额定电流Rated Current Amps

38

9

12

15

18

输出功率Output Power W

1570

2356

3141

3926

4712

峰值转矩Peak Torque N-m

15

22.5

30

37.5

45

峰值电流Peak Current Amps

114

27

36

45

54

力矩常数Torque constant N-m/A

0.131

0.845

0.845

0.845

0.845

反电势常数Back EMF V/kRPM

13.7

88.6

88.6

88.6

88.6

转动惯量Rotor inertia Kg·cm2

7.2

10.8

14.4

18

21.6

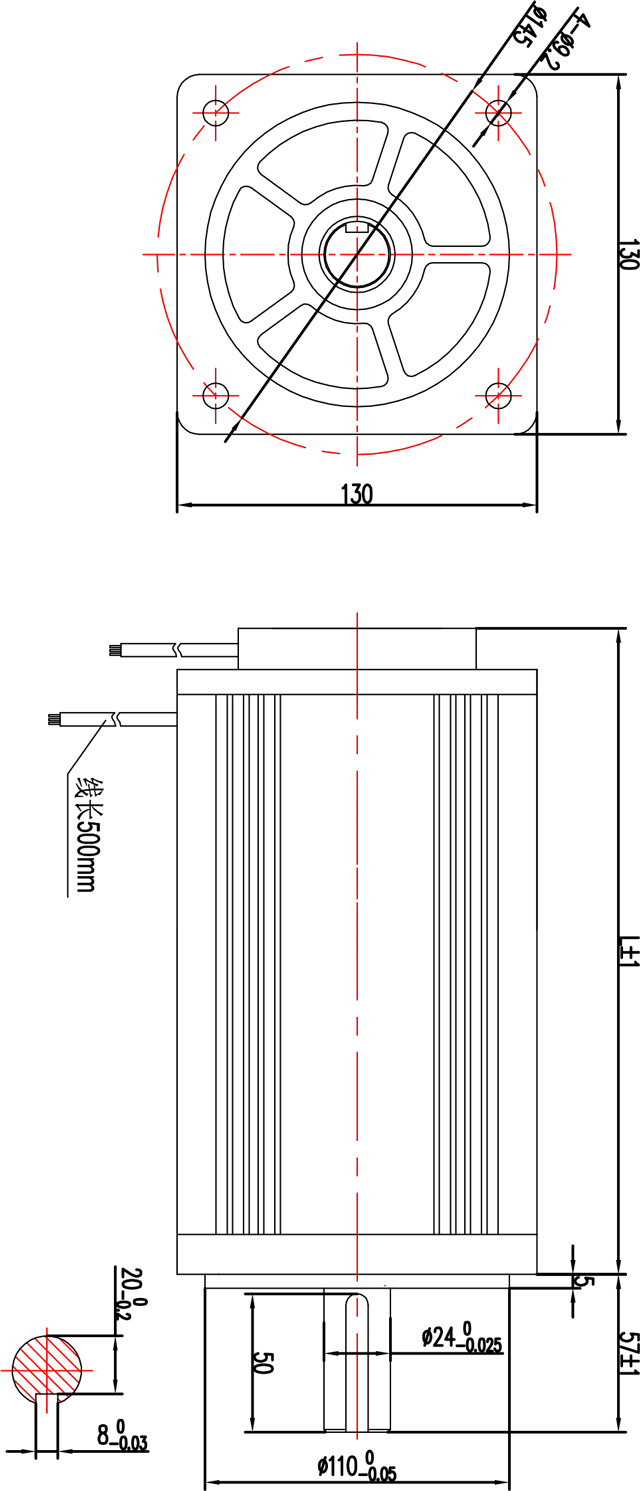

机身长Body Length (L) mm

158

183

208

233

258

重量Mass kg

7

9

11

13

15
